Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory

    Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers

    Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers
    • Buy cheap Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory from wholesalers

    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory

    Ask Lasest Price
    Brand Name : HDF
    MOQ : 1 Set
    Supply Ability : 5 Set/Sets per Quarter
    Price : $66,666.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory

    Factory direct selling potato chips large frying production line/crisper continuous feed fryer

    Product Description

    Process of Potato Chips Making Machine:

    Only for reference: hoisting→cleaning and peelingpicking→hoisting→cutting→washing→blanching→air cooling&dewater→frying→deoiling→air cooling→seasoning→conveyorpackaging .

    (also we can change it as frozen french fries)

    Reference picture as bellow(High allocation):


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Technical Parameter Of Potato Chips Making Machine (only for reference):


    Item

    Power

    Dimension

    1. Elevator

    0.75kw/380v/50Hz

    2000*800*1600mm

    2. Cleaning and Peeling Machine

    4.75kw/380v/50Hz

    3100*900*1500mm

    3. Sorting Conveyor

    0.75kw/380v/50Hz

    3000*900*900mm

    4. Potato Chips Cutting Machine

    1.1kw/380v/50Hz

    950*800*950mm

    5. Washing Machine

    5kw/380v/50Hz

    5000*1600*900mm

    6. Blanching Machine

    70kw/380v/50Hz

    6000*1600*950mm

    7. Air De-water Machine

    15kw/380v/50Hz

    4000*1200*1400mm

    8. Elevator

    0.75kw/380v/50hz

    1500*800*1300mm

    9. Potato Chips Frying Machine

    203kw/380v/50Hz

    7000*1200*2600mm

    10. Oil Filter Machine

    1.5kw/380V

    1100*600*950mm

    11. Vibrating De-oil Machine

    1.5kw/380v/50Hz

    1500*1000*1300mm

    12. Air Drying Machine

    8kw/380v/50Hz

    4000*1200*1600mm

    13. Elevator

    0.75kw/380v/50Hz

    2000*800*2200mm

    14. Flavoring Machine

    1.5kw/380v/50hz

    2400*1000*1600mm

    15.Packaging machine

    3.0kw/380v/50hz

    1400*1500*2600mm


    Potato Chips Making Machine Main Detail parts:

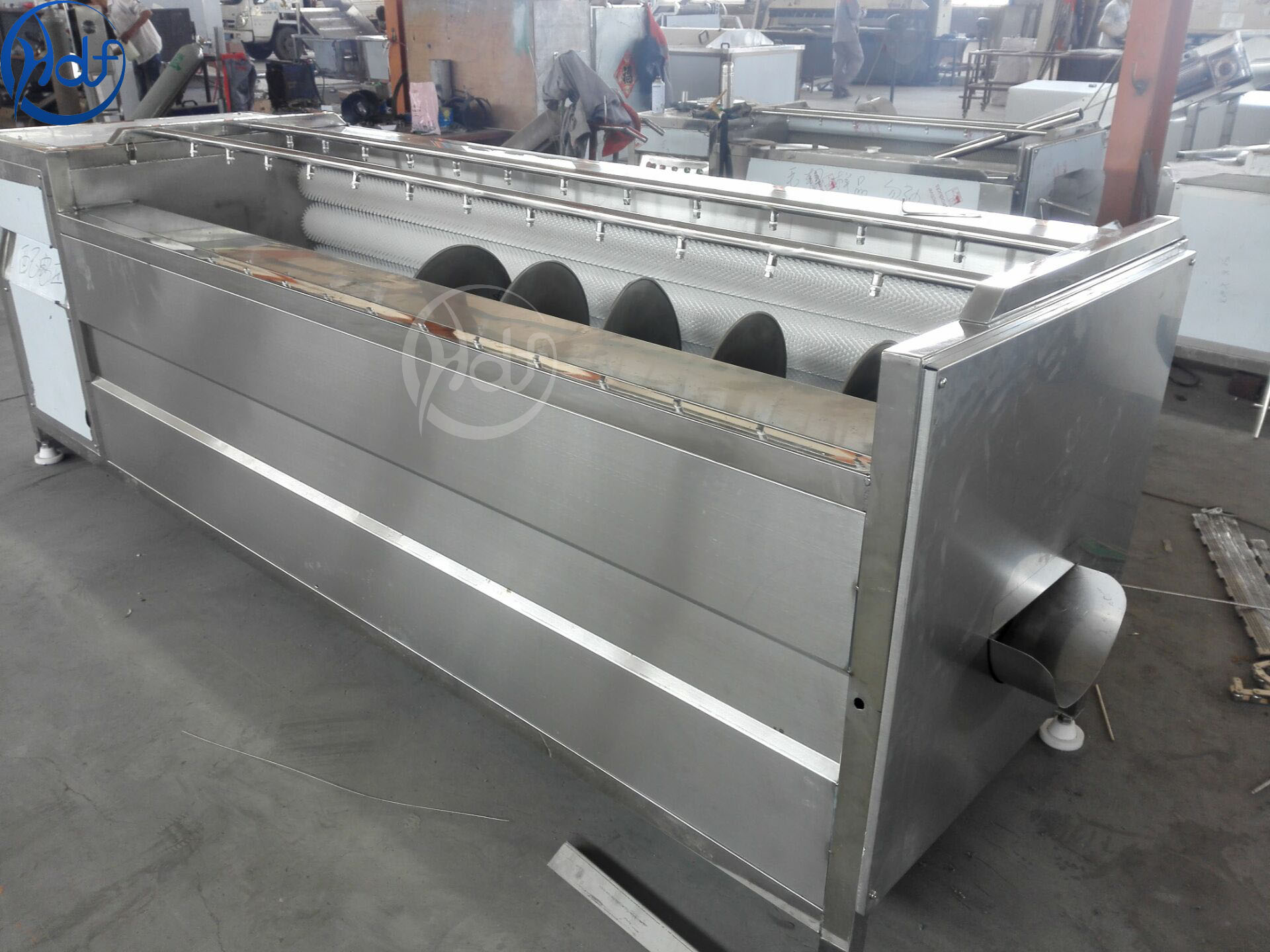

    Potato peeling and washing machine:

    Potatoes enter the peeler through the hoist, and peel thoroughly through the wool roller. The bottom of the potato is equipped with a circulating filter tank, which can effectively save water resources. Potatoes are automatically discharged by screw driving, and the peeling time can be adjusted.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Sorting machine:

    After peeling the potatoes, they enter the equipment, and then they are picked manually to see if there are any bad or unqualified potatoes, or if the skin has not been washed off, so that they can be treated. The picking line adopts high-quality food-grade conveyor belt, which is safe and hygienic and meets the food requirements.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory

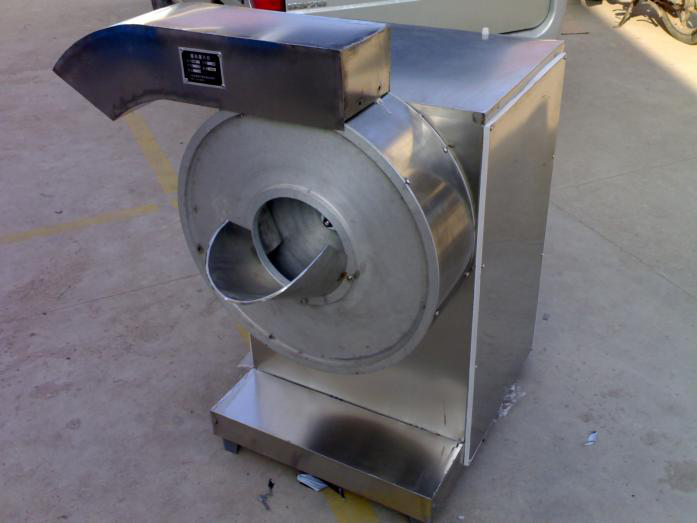

    Potato chips/French fries Cutting machine:

    Qualified potatoes enter the potato chips machine automatically through picking line, and the potato chips machine completes the cutting work continuously.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Potato chips/French fries washing machine:

    The potato chips enter the washing machine and are washed by bubble wave to make the potato chips roll.The starch on the surface of the potato chips is thoroughly washed.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Potato chips/French fries Blanching machine:

    Through this mechanism, the activity of enzymes in potato chips is stopped, the original fresh color of potato chips is maintained, the softness of cells is enhanced,and the evaporation of water is facilitated.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Potato chips/French fries Frying machine:

    The equipment adopts pure frying technology, equipped with dynamic filtration system and circulating device, realizes automatic filtration and slag discharging in the working process, and ensures the quality of frying oil.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Potato chips/French fries Seasoning machine:

    Potato chips/french fries enter the machine after deoiling and can be evenly sprinkled with salt or other condiments.This seasoning machine can be used or not. It just depends on customer's requirements.


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Packaging & Shipping

    500 kg/h Best Price Automatic French Fries Crisp Potato Chips Making Machine

    International standard wooden case packaging


    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory


    Company Information

    Factory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing FactoryFactory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing FactoryFactory Direct Selling Potato Chips Large Frying Production Line/crisper Continuous Feed Fryer Crisper Food Processing Factory

    FAQ

    Q1:What's your capacity?

    A1:We have different models of machines that can be customized according to your needs

    Q2:What's the machine voltage or power of your machine?

    A2:Usually in our country voltage is 220v,50hz, single phase , or 380v, 50hz, 3 phase, if you have special requirement , please tell us, we will modify the voltage according to your requirement.

    Q3:How to install the machine for us?

    A3:We can install the machine install by video, email ,picture, etc, and if for large project , we can also arrange our workers help you to install it in your country .

    Q4:If we have problems when we use your machine, what should we do?

    A4:If you have any problems, just contact us, we will help you to solve, and if necessary, we will arrange our engineers to help you in your place.

    Q5:Can you accept OEM?

    A5: Yes, we can. We had 12years OEM experience.

    Q6:What’s the MOQ of order?

    A6: MOQ is 1 set

    Q7:Can you make a general proposal for us if we have no technical engineer?

    A7: Yes, sure. We can offer the professional suggestions and proposal design for you freely.

    Q8:How about after-sale service?

    A8: We will make a completely installation and manual operation attached with shipment. If the customer still have question aboard, we will guide the customer by phone, email, or video firstly, engineers available to service overseas if necessary, the customer will bear all travel expense.

    Q9:Are you manufacture company or trade company?

    A9: We are manufacture company.We have a stable quality inspection system.
